UWAGA! Niniejszy dobór jest wstępnym doborem przekroju belki PFEIFER Hybridbeam® w standardowych zastosowaniach.
Zastrzegamy sobie do stosownych korekt przy opracowaniu dla konkretnego przedmiotu projektu.

Pfeifer_logo Hybridbeam® Preselection Calculator

Project administration

Date

Company

Responsible

Project name

Position

Number of position

General data
Type of the beam
PFEIFER BHM [middle]
PFEIFER BHM(d) [middle in expantion joint]
PFEIFER BHR [edge]
Type of the slab
hollow-core slab
monolithic ceiling
Dimension
Span

LBH

[m]

Ls1

[m]

Ls2

[m]

Height

hs1,HC

[mm]

hs2,HC

[mm]

hs1

[mm]

hs2

[mm]

Load
Partial safety factor acc. to
EC
user
Additional dead load (e.g. layers)

ɣg

[-]

gE,k

[kN/m2]

Variable (live) load

ɣq

[-]

qE,k

[kN/m2]

Dead load (Self-weight of the Slab)

ɣd

[-]

dE,k,1,HC

[kN/m2]

dE,k,2,HC

[kN/m2]

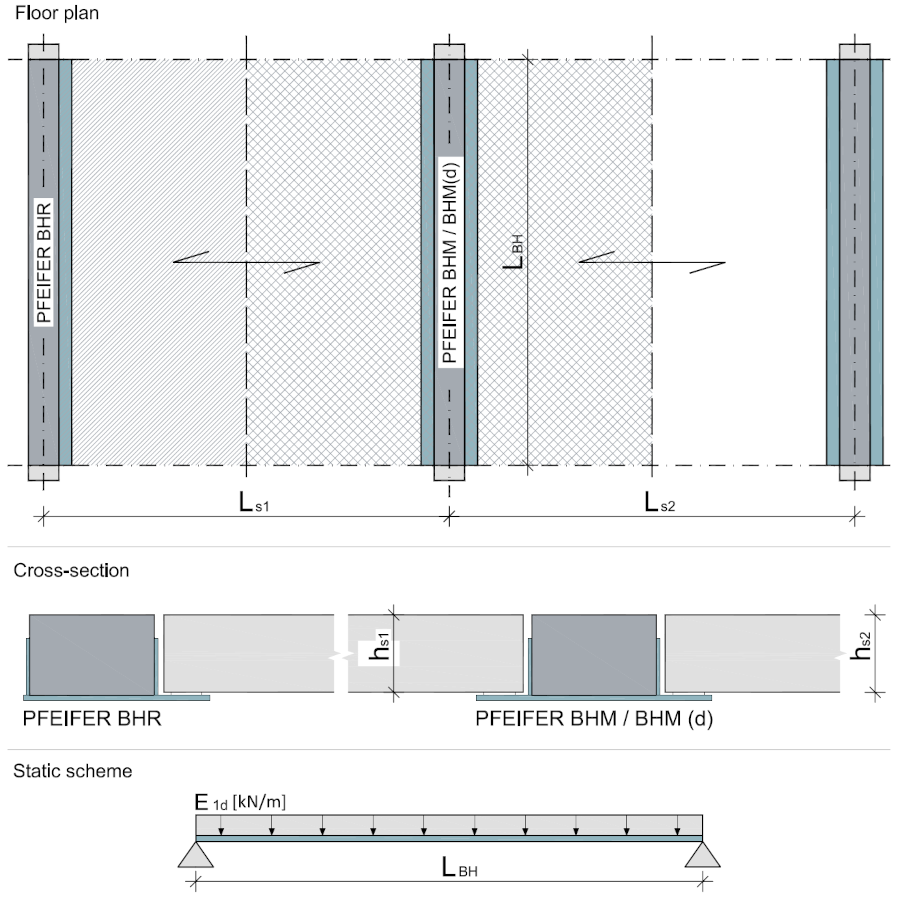

Slab_plan
Comments

- present software is only for preselection of Hybridbeams® type and size

- calculations refers to standard load bearing capacity of Hybridbeams®

- detailed calculations (including all conditions) is possible in cooperaion with PFEIFER Poland engineers

- the result table consists all higts of Hybridbeams® because there is possiblity do use them in system of different hights of slab and beam

------------------------------------------------------------------

- clue: to save the results print this website to PDF file (to fit to page use 60% scale with minimum margins)

- after changing data please click calculate again to update results

- clue: to calculate another position refresh this website

Result
Possiblity of application Hybridbeam® type Hybridbeam® size Utilisation
